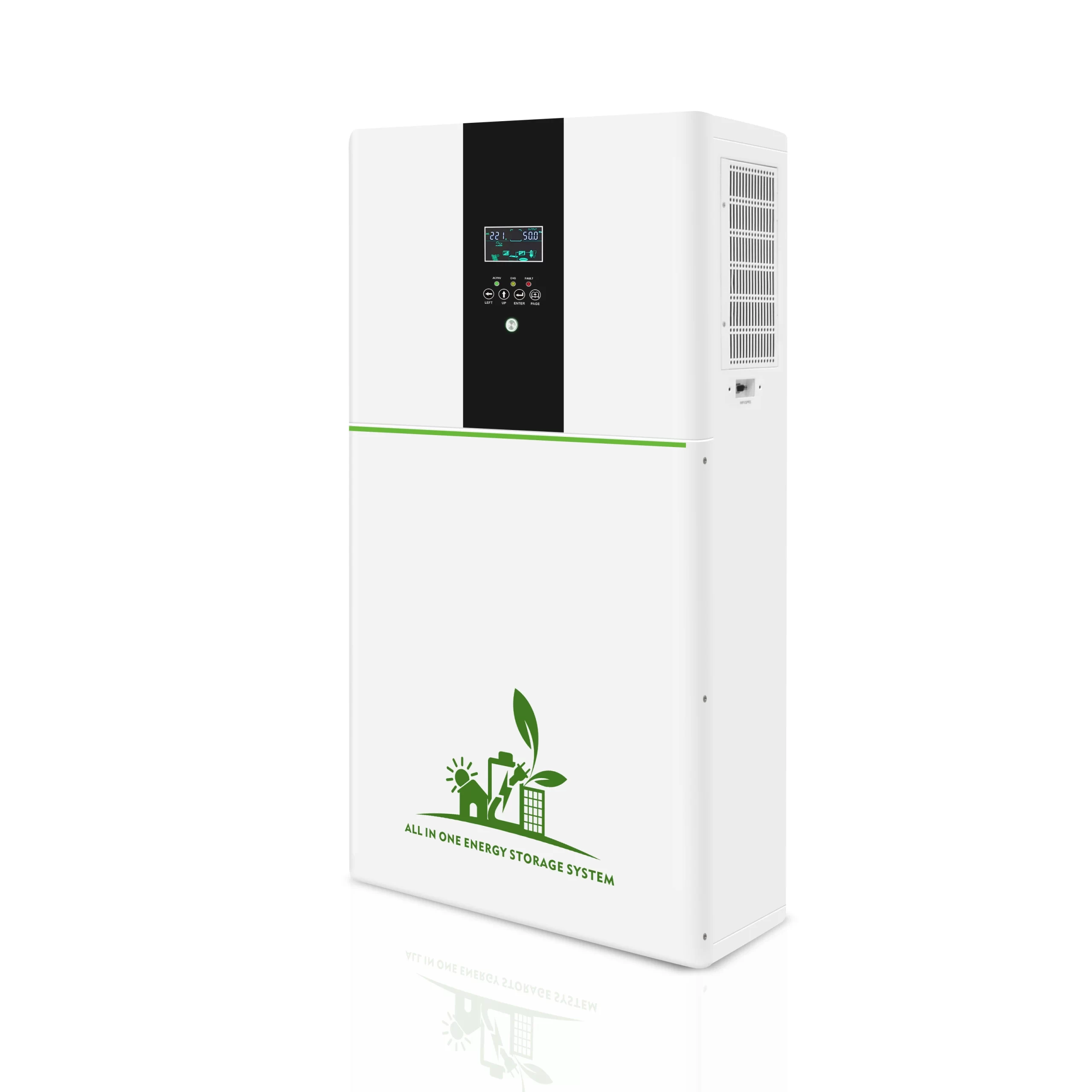

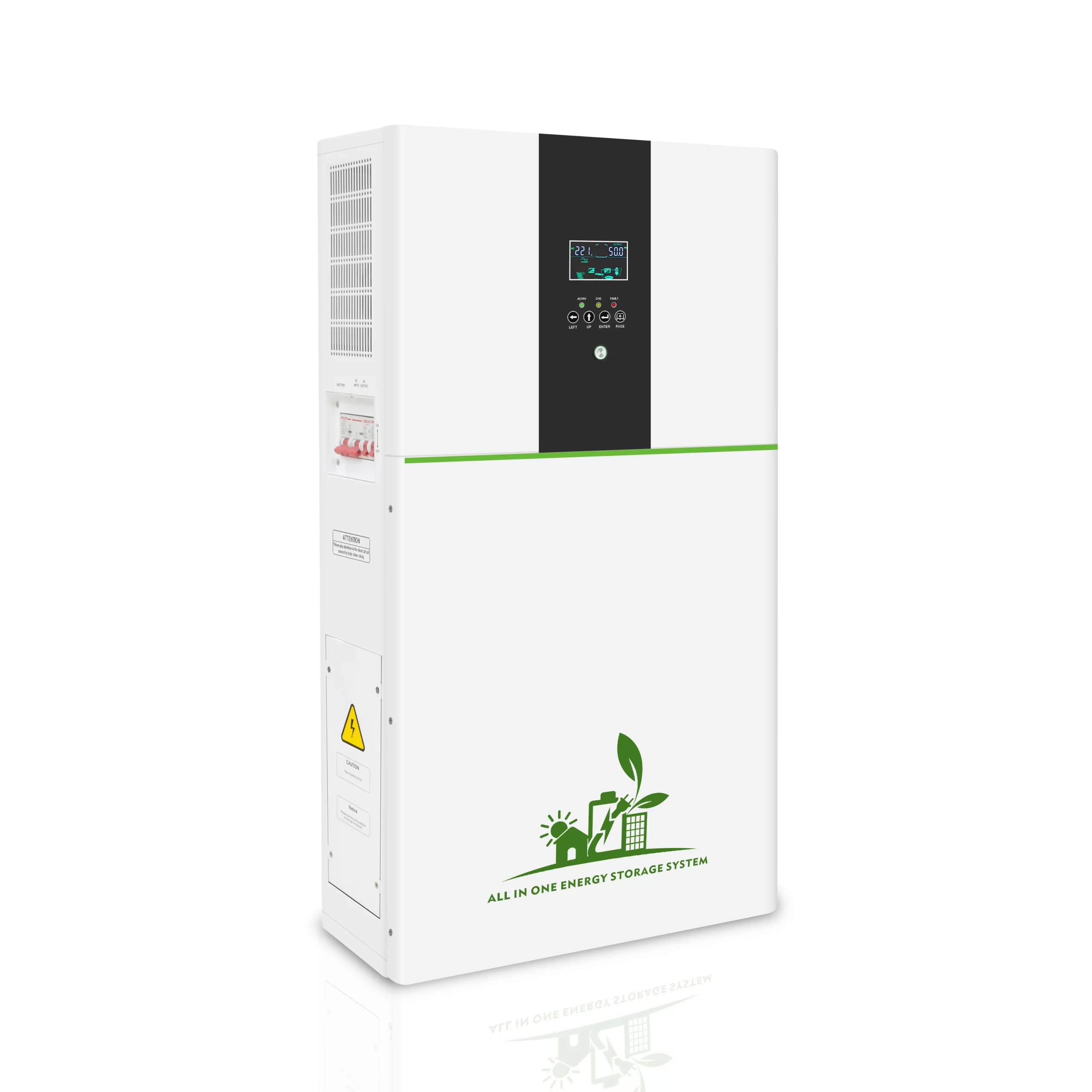

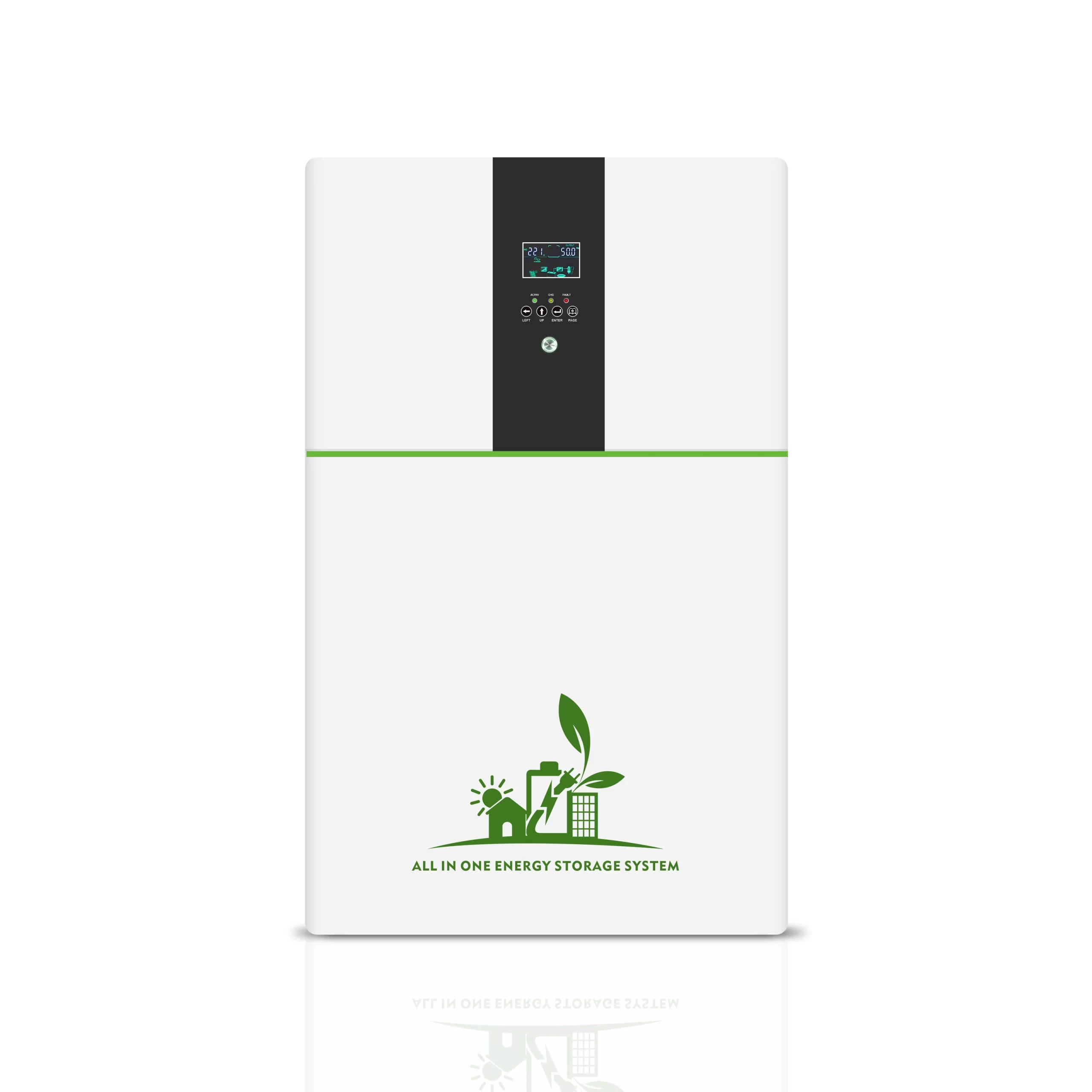

SHE Pro Solar Generator Built-in Lithium battery 5KW
1 : All in one design including mppt controller, solar inverter and lithium battery, reducing installation complexities and saving space.
2 : High frequency pure sine wave solar inverter, 94% conversion efficiency.
3 : Flexible energy storage capacity, supports three charging methods, solar charging, diesel and gasoline generator charging, and power grid charging.
4 : RS485, WIFI, GPRS App monitors inverter and lithium battery.
5 : Custom appearance, color, logo, parameters optional.
SHE Pro series solar generator is the single unit combines the essential components of a solar controller, dc to ac inverter, and lithium battery storage into one seamless cabinet, creating a harmonious and efficient energy ecosystem for your home or business.
Simplicity meets sophistication with our all-in-one design. This integrated solar system eliminates the need for multiple components, reducing installation complexities and saving space.
5KW pure sine wave inverter with MPPT solar controller ensures that the machine operates more efficiently and stably. The LiFePO4 lithium battery serves as a powerhouse, storing surplus energy for use during nighttime or cloudy days, ensuring uninterrupted power supply.
SHE Pro series solar generator datasheet
| Model | SHE Pro-T50248 |
| Power | |
| Rated Power | 5000W |
| Single/Parallel | Single |
| Battery | |
| Standard Battery Voltage | 48VDC |
| Battery Type | LiFePO4 battery |
| Battery Capacity | 51.2VDC 100AH （Can parallel batteries, standard rack mount，19inch/3U） |
| Max Charge/Discharge Current | 100A |
| Charge/Discharge Cut-Off Voltage | 44.8VDC/58.4VDC |
| AC Input | |
| AC Input Voltage | 220VAC/230VAC/240VAC |
| AC Input Frequency | 43Hz~53Hz（50Hz)，53Hz~63Hz（60Hz) |
| AC Output | |
| Output Wave | Pure Sine Wave |
| Conversion Efficiency(INV mode) | 94%（peak value） |
| Output Voltage/Frequency (INV mode) | 220VAC/230VAC/240VAC±2%/50Hz ±1%,60Hz ±1% |
| MPPT Solar Charge Controller | |
| Max PV Input Voltage（Voc） (At The Lowest Temperature) | 500VDC |
| PV Array Maximum Power | 6000W |
| MPPT Tracking Voltage Range | 120V~450VDC |
| MAX PV Charging Current | 100A |
| Other | |
| Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection |
| Protection Degree | IP20 |
| Display | LCD+LED |
| Cooling Method | Cooling fan in intelligent control |
| Communication | USB/RS232 communication , mobile APP (WIFI monitoring or GPRS monitoring) Optional |
| Working Mode | Mains priority/PV priority/Battery priority |
| Operating Temperature | -15 ℃ ~40 ℃ |
| Relative Humidity | 0%-95% (No condensation) |
| Size | |
| Product Size(L*W*Hmm) | 525*180*900 |
| Package Size(L*W*Hmm) | 535*190*910 |
