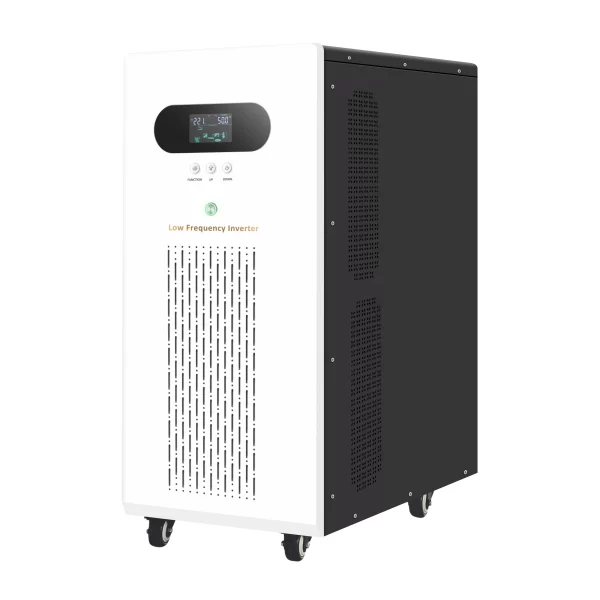

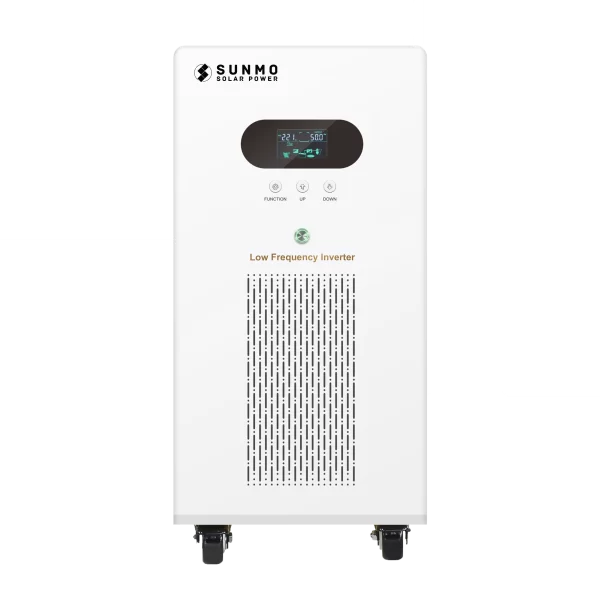

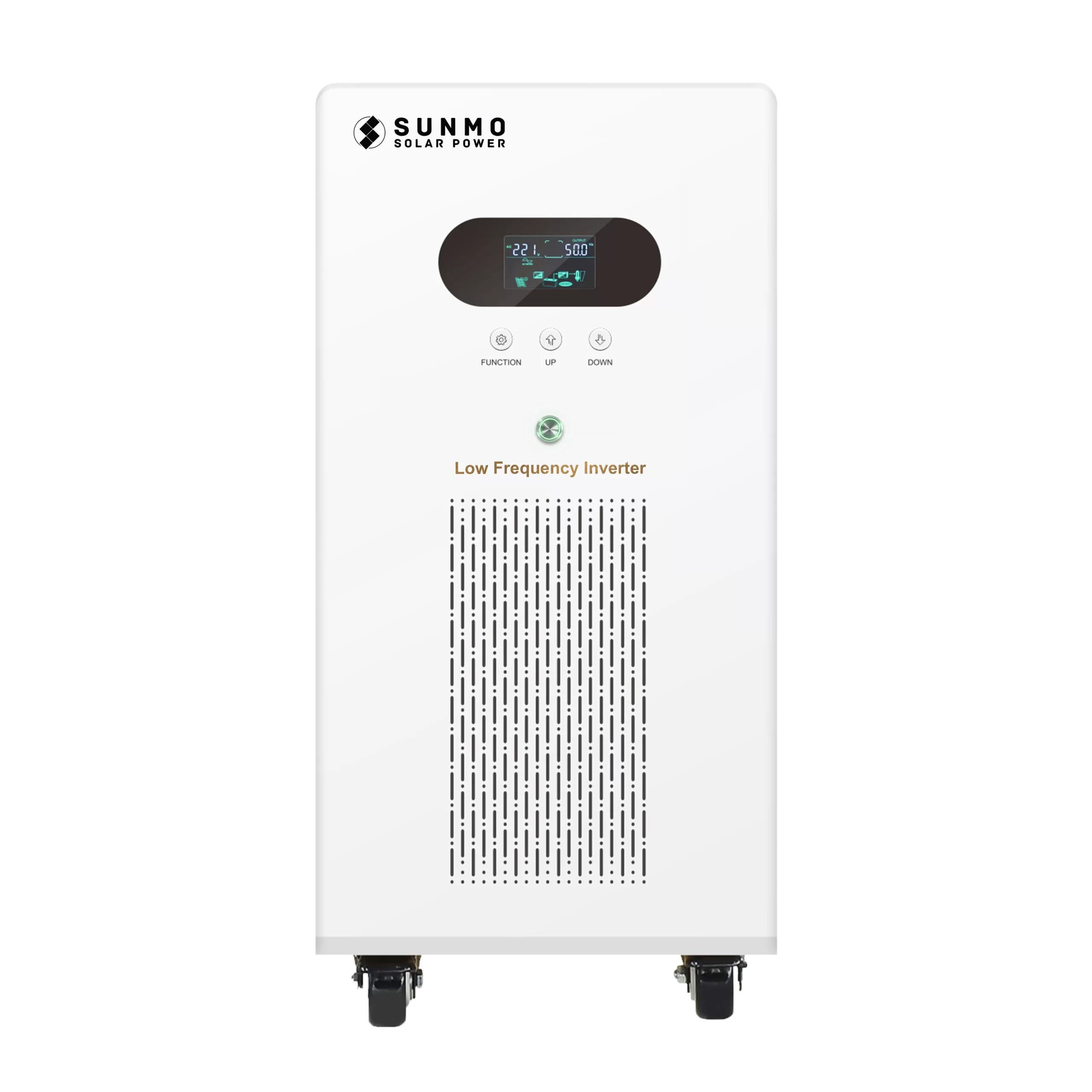

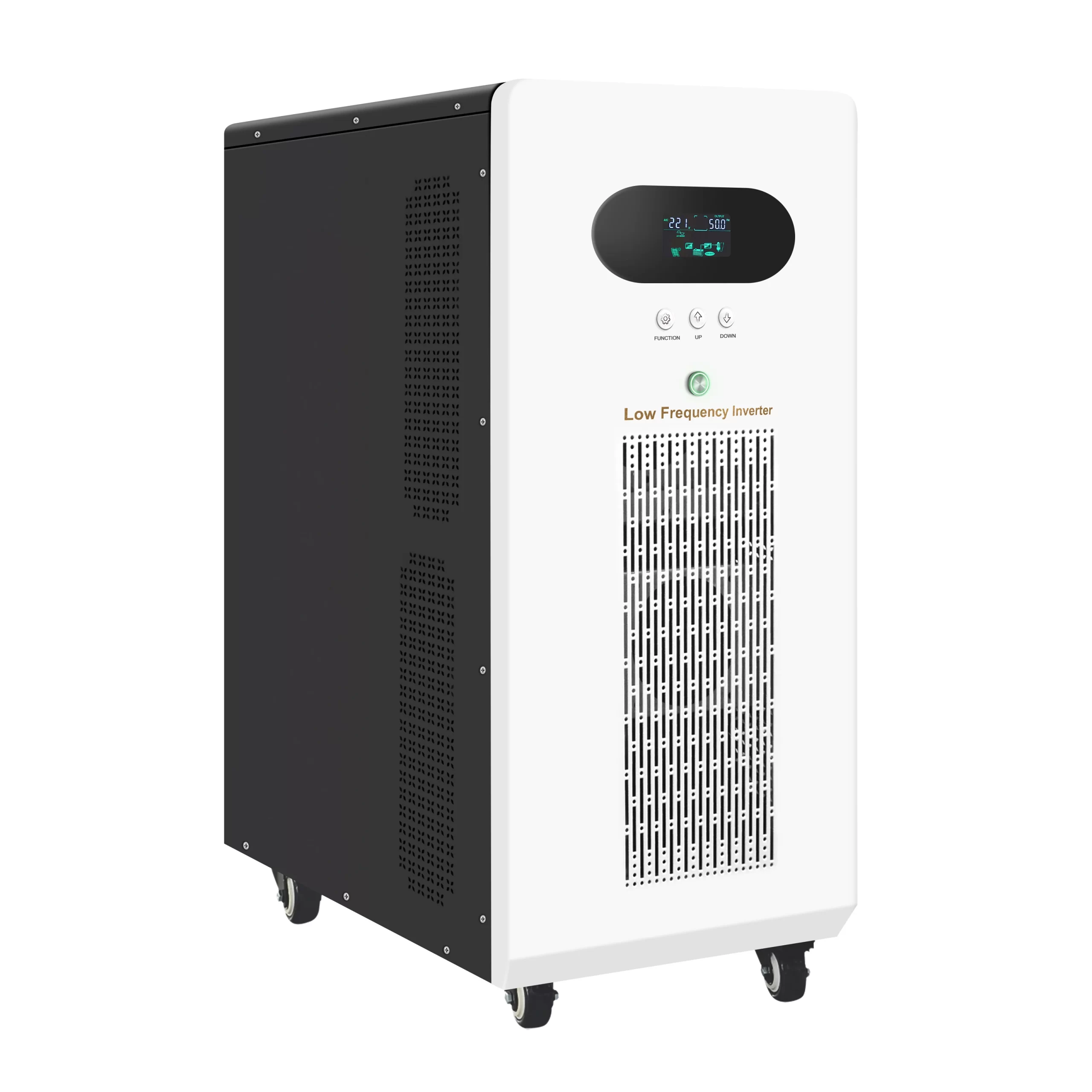

SWF series solar inverter 700W-40KW
1 : Low frequency off grid solar inverter with transformer, pure sine wave 700 watt to 40 kilowatt
2 : Compatible with lead-acid and lithium batteries, Inverter and lithium battery with communication interface
3 : Mains power and generators can charge the battery, inverter can be used as an uninterruptible power supply
4 : Unattended power generation equipment, that means, when the battery is under high and low protection, the inverter will automatically resume its output function after the battery voltage or load returns to normal. The inverter starts automatically when connected to mains power
5 : Shape, color and parameters can be customized
SWF series solar inverter cover a broad power range, from 700 watt to 40 kilowatt, catering to a wide spectrum of applications. What sets the SWF Series apart is its compatibility with both lead-acid and lithium batteries, and its seamless communication capabilities with lithium batteries for enhanced efficiency and control. Sourcing solar inverter directly from Chinese factory without middlemen. Shape, color and parameters can be customized for importers and agents.
SWF Series Solar Inverter Technical Parameter
| Model:SWF | 70112/24 | 10212/24 | 15224/48 | 20224/48 | 30224/48 | 35248/96 | 40248/96 | 50248/96 | 60248/96 | 70248/96/192 |
| Power | ||||||||||
| Rated Power | 700 Watt | 1000 Watt | 1500 Watt | 2000 Watt | 3000 Watt | 3500 Watt | 4000 Watt | 5000 Watt | 6000 Watt | 7000 Watt |
| Phase Type | Single phase L-N | |||||||||
| Battery | ||||||||||
| Standard Battery Voltage | 12/24VDC | 12/24VDC | 24/48VDC | 24/48VDC | 24/48VDC | 48/96VDC | 48/96VDC | 48/96VDC | 48/96VDC | 48/96/192VDC |
| Battery Type | Lead-acid battery / Lithium battery / Custom battery | |||||||||
| Built-in Controller MPPT(optional) | ||||||||||
| Rated Current | 30A | 60A | 48V:100A,96V:60A | |||||||
| Maximum PV Input Power | 12V（420W）/24V（840W）/48V（1680W） | 24V（1680W）/48V（3360W）/96V(6720W) | 48V（5600W）/96V(6720W) | |||||||
| Max PV Input Voltage（Voc） (At The Lowest Temperature) |
12V/24V system：120VDC；48V system：180VDC；96V system：280VDC | |||||||||
| MPPT Tracking Voltage Range | 12V system（15V-80V）；24V system（30V-100V）；48V system（60V-140V）；96V system（120V-220V） | |||||||||
| Dimensions and Weight | ||||||||||
| Product Size(L*W*Hmm) | 340x165x283 | 410x200x350 | 491x260x490 | |||||||
| Packing Size(L*W*Hmm) | 405x230x340(1PC) / 475x415x350(2PC) | 475x265x410 | 545x315x550 | |||||||
| N.W.(kg) | 9.5(1PC) | 10.5(1PC) | 11.5(1PC) | 17 | 20.5 | 21.5 | 29 | 30 | 31.5 | 36 |
| G.W.(kg) | 11(1PC) | 12(1PC) | 13(1PC) | 19 | 22.5 | 23.5 | 32 | 33 | 34.5 | 39 |
| 型号：WF | 80248/96/192 | 10348/96/192 | 12396/192 | 153192 | 203192 | 253240 | 303240 | 403384 | ||
| Power | ||||||||||
| Rated Power | 8 Kilowatt | 10 Kilowatt | 12 Kilowatt | 15 Kilowatt | 20 Kilowatt | 25 Kilowatt | 30 Kilowatt | 40 Kilowatt | ||
| Battery | ||||||||||
| Standard Battery Voltage | 48/96/192VDC | 48/96/192VDC | 96/192VDC | 192VDC | 192VDC | 240VDC | 240VDC | 384VDC | ||
| Battery Type | Lead-acid battery / Lithium battery / Custom battery | |||||||||
| Built-in Controller MPPT(optional) | ||||||||||
| Rated Current | 48V:100A, 96V:100A，192V:50A | 100A | 100A | |||||||
| Maximum PV Input Power | 48V（5600W）/96V(11.2KW)/192V(11.2KW) | 192V(11.2KW*2)/240V(14KW*2) | 240V(14KW*2)/384V(22.4KW*2) | |||||||
| Max PV Input Voltage（Voc） (At The Lowest Temperature) |
48V system：180VDC；96V system：280VDC；192V system：450VDC；240V system：500VDC；384V system：800VDC | |||||||||
| MPPT Tracking Voltage Range | 48V system（60V-140V）；96Vsystem（120V-220V）；192Vsystem（240V-360V）；240Vsystem（300V-400V）；384Vsystem（480V-640V） | |||||||||
| AC Input | ||||||||||
| Rated Input Voltage | 110VAC/120VAC/220VAC /230VAC/ 240VAC | |||||||||
| AC Input Voltage Range | 73VAC~138VAC（110VAC） / 83VAC~148VAC（120VAC） / 145VAC~275VAC（220VAC） / 155VAC~285VAC（230VAC） / 165VAC~295VAC（ 240VAC） （700W~7000W） 92VAC~128VAC（110VAC） / 102VAC~138VAC（120VAC） / 185VAC~255VAC（220VAC） / 195VAC~265VAC（230VAC） / 205VAC~275VAC（ 240VAC） （8KW~40KW） |
|||||||||
| AC Input Frequency | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |||||||||
| AC Output | ||||||||||
| Output Wave | Pure Sine Wave | |||||||||
| Conversion Efficiency | >85% | |||||||||
| AC Output Voltage / Frequency Range (INV Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1% | |||||||||
| Other | ||||||||||
| Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||||||
| Protection Degree | IP20 | |||||||||
| Display | LCD | |||||||||
| Cooling Method | Cooling Fan in Intelligent Control | |||||||||
| Communication | RS485/APP（WIFI monitoring or GPRS monitoring） | |||||||||
| Working Mode（settable） | Battery Priority/Mains Priority | |||||||||
| Operating Temperature | -15℃~40℃ | |||||||||
| Relative Humidity | 0%~95% ,(No Condensation) | |||||||||
| Dimensions and Weight | ||||||||||
| Product Size(L*W*Hmm) | 540x350x695 | 593x370x820 | 721x400x1002 | |||||||
| Packing Size(L*W*Hmm) | 600*410*810 | 656*420*937 | 775x465x1120 | |||||||
| N.W.(kg) | 66 | 70 | 77 | 110 | 116 | 123 | 167 | 192 | ||
| G.W.(kg) | 77 | 81 | 88 | 124 | 130 | 137 | 190 | 215 | ||
