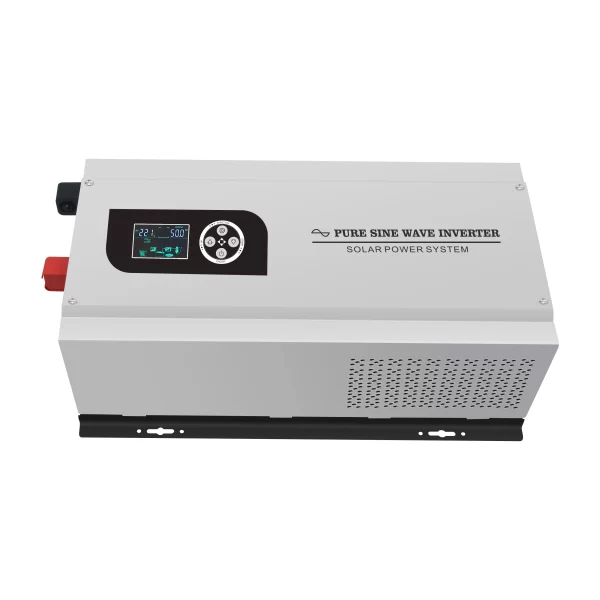

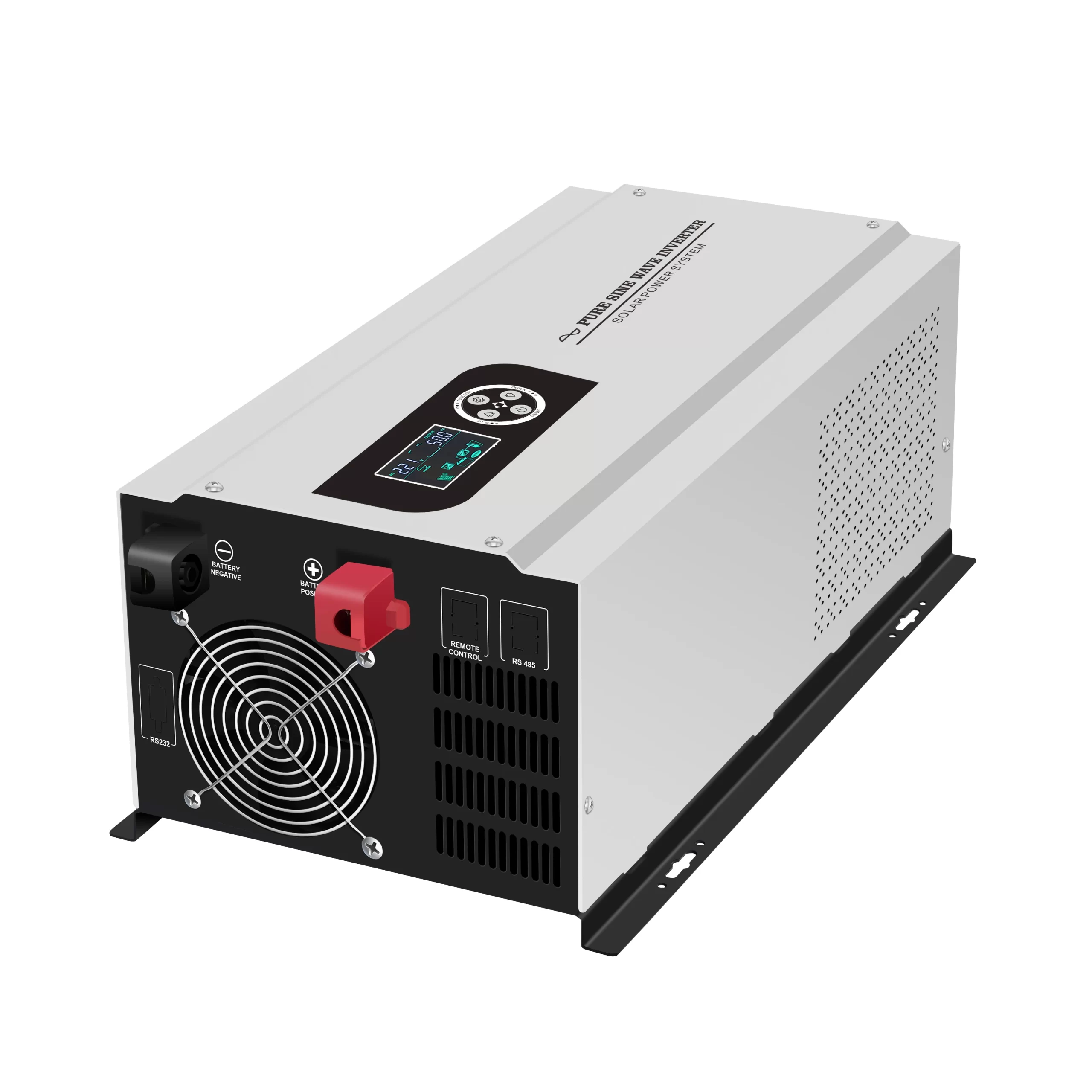

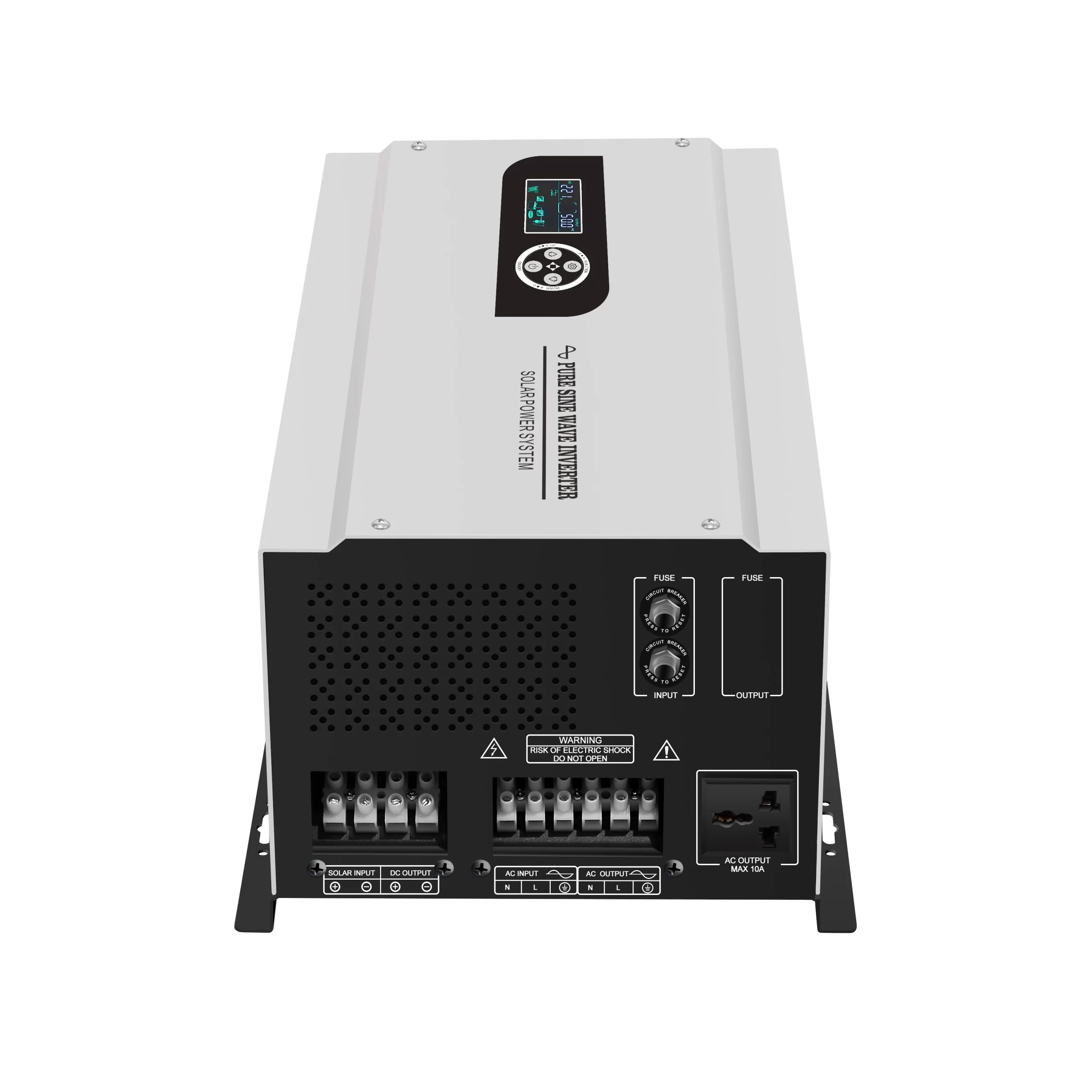

SUP Series Hybrid Inverter 1000W-7000W

1 : Low frequency pure sine wave, off grid solar inverter charger
2 : AC/solar priority for charging, adjustable solar and AC charging current via multi-function display
3 : Matches a variety of battery types, such as lithium battery, LiFePO4, gel battery
4 : Optional external display with a length of 3 meters and one-button switch inverter
5 : Hybrid solar inverter with mppt charge controller

分类： low frequency inverter 标签： low frequency inverter

描述

SUNMO SUP is a cost-effective intelligent off grid hybrid solar inverter charger with MPPT charge controller. In addition to the built-in LCD display, users can also choose an external display with a length of 3 meters.

The display can set the battery charging parameters, AC/solar charger priority, charging current, and view the inverter fault code.

When the battery voltage is low, it will automatically switch to the AC power grid to provide continuous power for the load. Matches a variety of battery types, such as lithium ion battery, lithium iron phosphate battery (LiFePO4), Gel battery, sealed valve regulated lead acid battery, It is suitable for personal use.

If you need one machine with the functions of inverter and charger, DP inverter is very suitable for you, inverter charger 12v/24v/48v convert to 110v/120v/220v/230v/240v, 1Kw to 7Kw.

SUP Series Hybrid Inverter Technical Parameter

Solar Inverter Charger Specification
Model: SUP		10212/24/48	15212/24/48	20212/24/48	30224/48	40224/48	50248	60248	70248
Rated Power		1000W	1500W	2000W	3000W	4000W	5000W	6000W	7000W
Peak Power（20ms)		3000VA	4500VA	6000VA	9000VA	12000VA	15000VA	18000VA	21000VA
Start Motor		1HP	1.5HP	2HP	3HP	3HP	4HP	4HP	5HP
Battery Voltage		12/24/48VDC			24/48VDC	24/48VDC	48VDC
Size(LWHmm)		555297184				615315209
Packing Size(LWHmm)		620345255				680365280
N.W.(kg)		12	13	15.5	18	23	24.5	26	27.5
G.W.(kg)（Carton Packing）		14	15	17.5	20	25.5	27	28.5	30
Installation Method		Wall-Mounted
Parameter
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC / 170VAC~275VAC（220VAC / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC）
	AC Input Frequency Range	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Max AC charging current	0~30A(Depending on the model）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤0.8% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss(Energy saving Mode)	≤10W
Battery Type	VRLA Battery	Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4)
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V(12V system; 24V system x2; 48V system x4)
	Battery undervoltage protection	Factory default: 10.5V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage alarm	Factory default: 15V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage protection	Factory default: 17V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage recovery voltage	Factory default: 14.5V(12V system; 24V system x2; 48V system x4)
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	PWM or MPPT
	Charging current	10A~60A（PWM or MPPT）				10A~60A(PWM ) / 10A~100A(MPPT)
	PV Input Voltage Range	PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system) MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 50V(12V/24V system); 100V(48V system) / MPPT: 150V(12V/24V/48V system)
	PV Array Maximum Power	12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A）; 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A）; 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A）
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD（External LCD Display(Optional)）
Thermal method		Cooling fan in intelligent control
Communication(Optional)		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice
