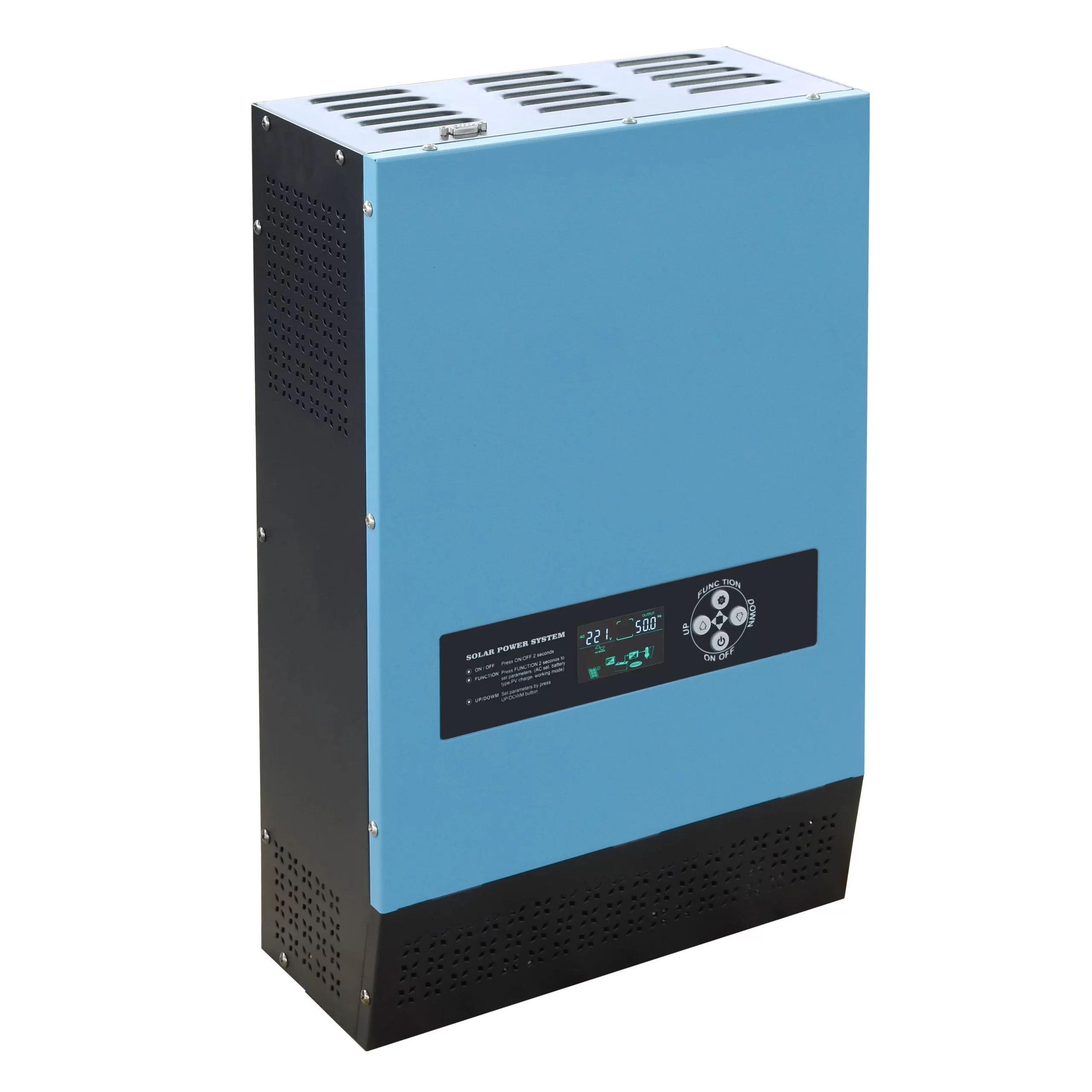

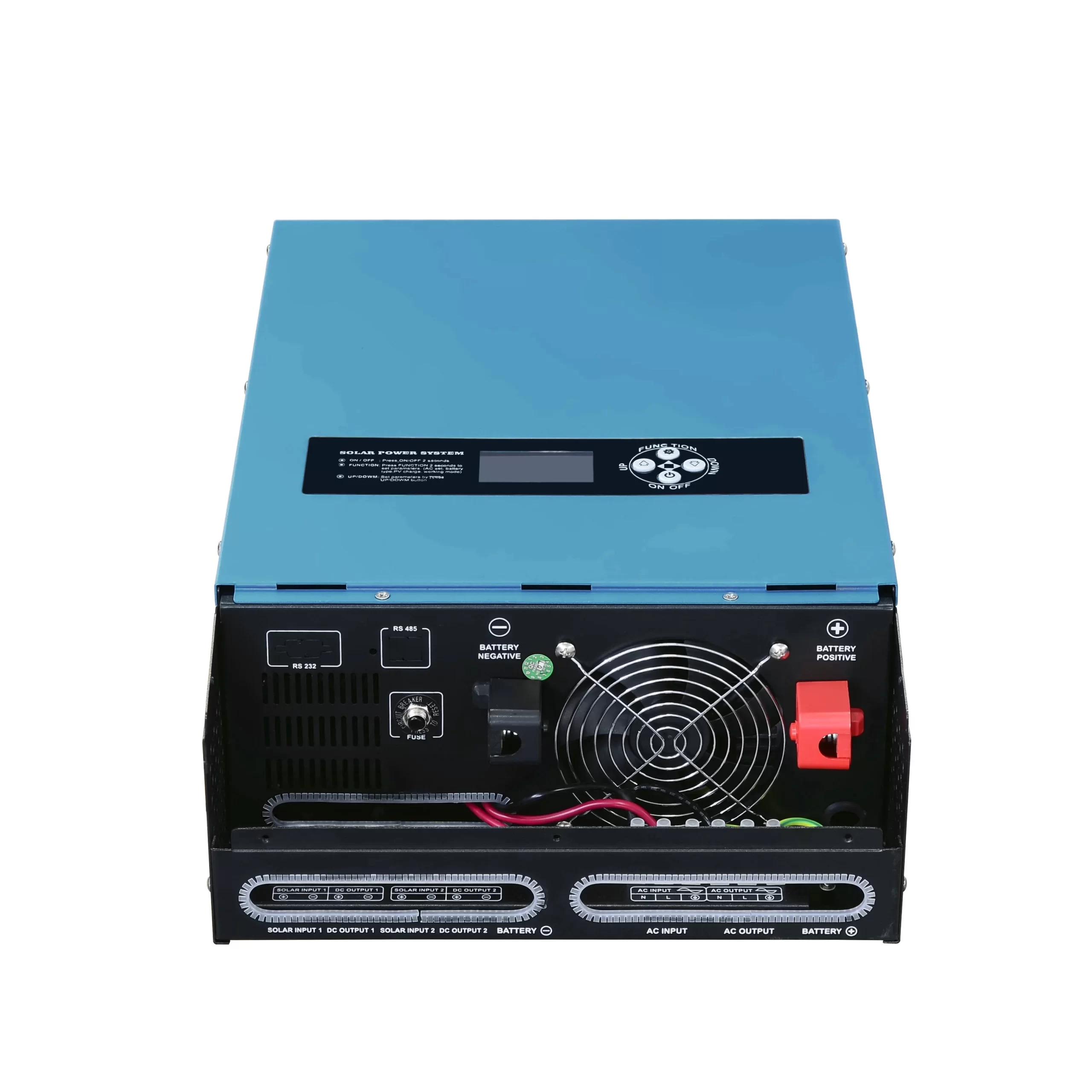

SLS series solar inverter 1KW – 6KW

1. Pure sine wave output; Low-frequency toroidal transformer lower loss;
2 .Intelligent LCD integration display;
3.AC charge current 0~30A adjustable, three working modes selectable;
4.Peak power more than 3 times, full-automatic and perfect protection function;
5.Added fault code query function, easy to monitor the operation in real-time;
6 .Supports diesel or gasoline generator, adapts any tough electricity situation;
7 .Combine industrial and home usage, wall-mounted design, and convenient installation.

分类： low frequency inverter 标签： low frequency inverter

描述

Are you choosing a solar panel with an inverter and battery? Sunmo SLS series solar panel inverter meets your expectations. This inverter is designed for off-grid solar power systems. You can buy solar panel inverters and batteries for solar power generation in your home. Sunmo can provide you with free solar scheme configuration and cheap solar panel battery inverter prices.

Advantages of Solar Panel Inverter

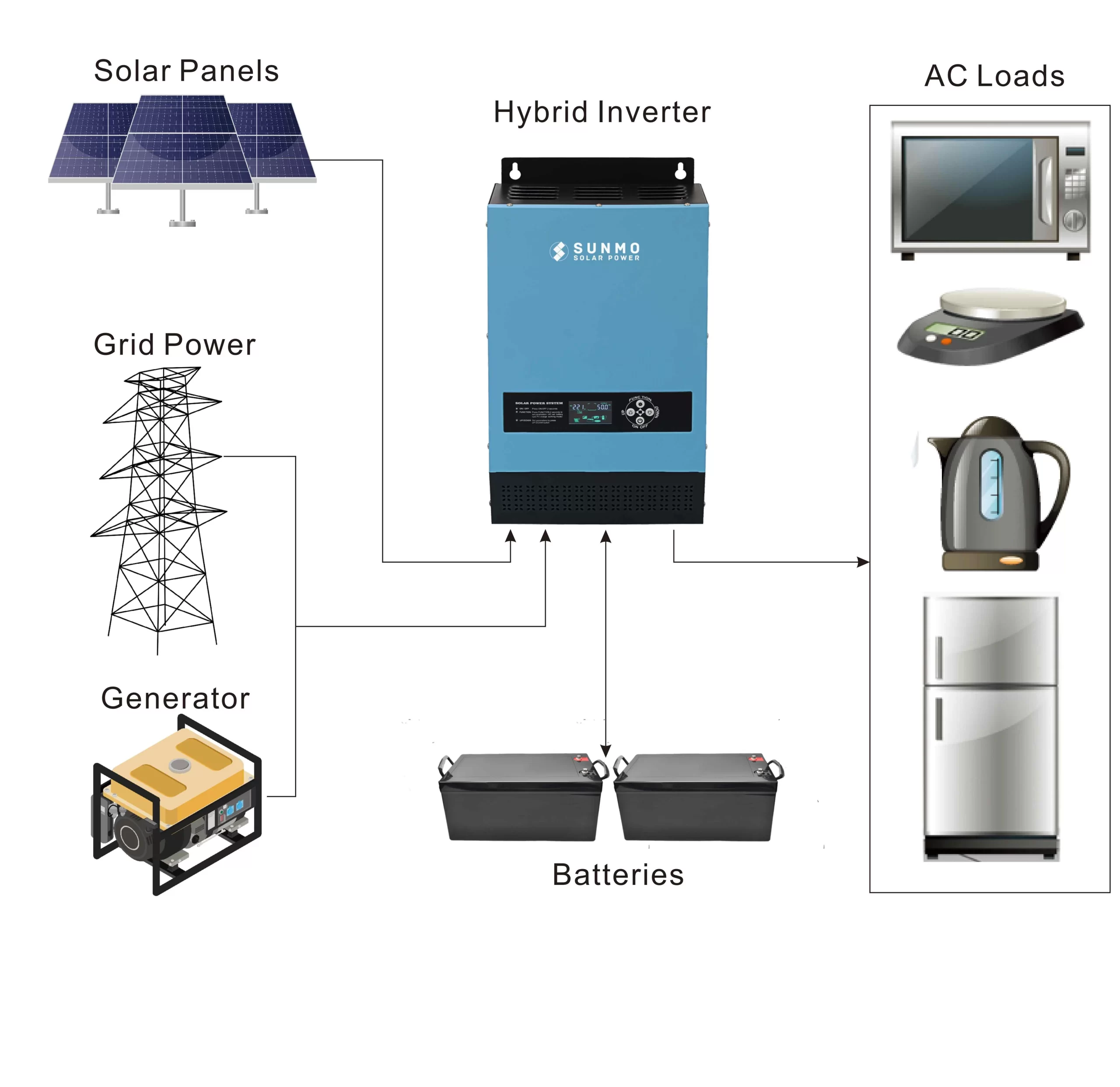

What is special about the solar panel inverter specially designed for solar power system? First of all, the inverter has a built-in solar controller. A machine has two functions inverter and control, but does not increase the area and weight of the solar power system. Secondly, the inverter has the complementary function of solar energy and AC mains power. Solar priority can be set. When the solar energy is insufficient, it will automatically switch to the main power supply. In this process, both solar and AC can charge lithium batteries or lead-acid batteries. In other words, if you buy the SLS series inverter, you only need to configure additional solar panels and batteries to use solar power system easily.

Solar Panel Inverter Technical Data

Solar Panel Inverter Specification
Model SLS		10212/24/48 (102)	15212/24/48 (152)	20212/24/48 (202)	30224/48 (302)	40224/48 (402)	50248 (502)	60248 (602)
Rated Power		1000W	1500W	2000W	3000W	4000W	5000W	6000W
Peak Power（20ms)		3000VA	4500VA	6000VA	9000VA	12000VA	15000VA	18000VA
Start Motor		1HP	1.5HP	2HP	3HP	3HP	4HP	4HP
Battery Voltage		12/24/48VDC			24/48VDC	24/48VDC	48VDC
Size(LWHmm)		500300140				530335150
Packing Size(LWHmm)		565395225				605430235
N.W.(kg)		12	13.5	18	20	22	24	26
G.W.(kg)（Carton Packing）		13.5	15	19.5	21.5	24	26	28
Installation Method		Wall-Mounted
Parameter
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC）
	AC Input Frequency Range	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Max AC charging current	0~30A(Depends on model)
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤0.8% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss (Energy saving Mode)	≤10W
Battery Type	VRLA Battery	Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage）
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V（Single battery voltage）
	Battery undervoltage protection	Factory default: 10.5V（Single battery voltage）
	Battery overvoltage alarm	Factory default: 15V（Single battery voltage）
	Battery overvoltage protection	Factory default: 17V（Single battery voltage）
	Battery overvoltage recovery voltage	Factory default: 14.5V（Single battery voltage）
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	MPPT or PWM
	Charging current	10A~60A（PWM or MPPT）				10A~60A(PWM ) / 10A~100A(MPPT)
	PV Input Voltage Range	PWM: 15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System) MPPT: 15V-120V(12V System); 30V-120V(24V System); 60V-120V(48V System)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 50V(12V/24V System ); 100V(48V System) / MPPT: 150V
	PV Array Maximum Power	12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A）/1120W(80A)/1400W(100A）; 24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A; 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A）
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Cooling fan in intelligent control
Communication		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	≤55dB
	Storage temperature	-10℃~40℃
	Noise	-15℃~60℃
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice
