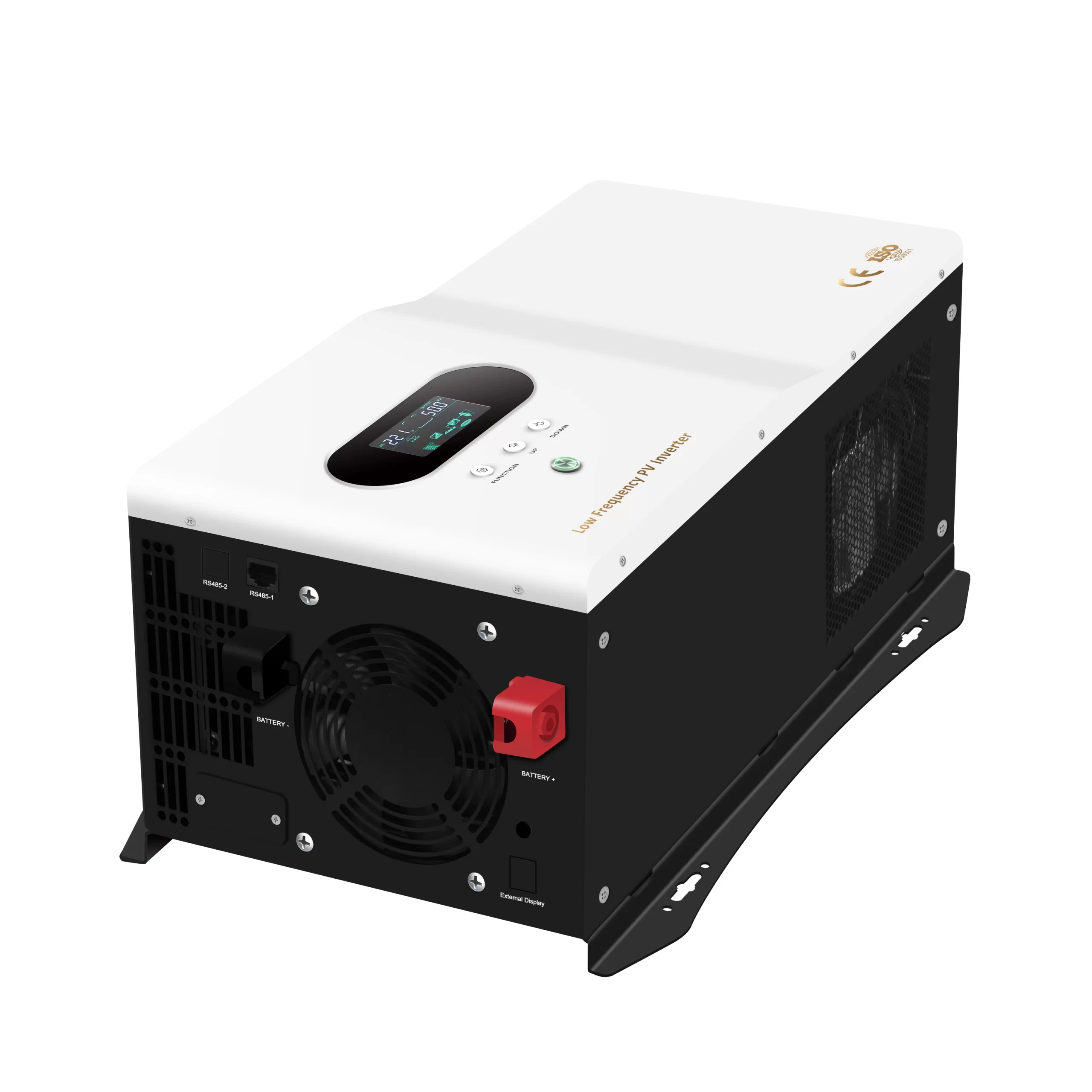

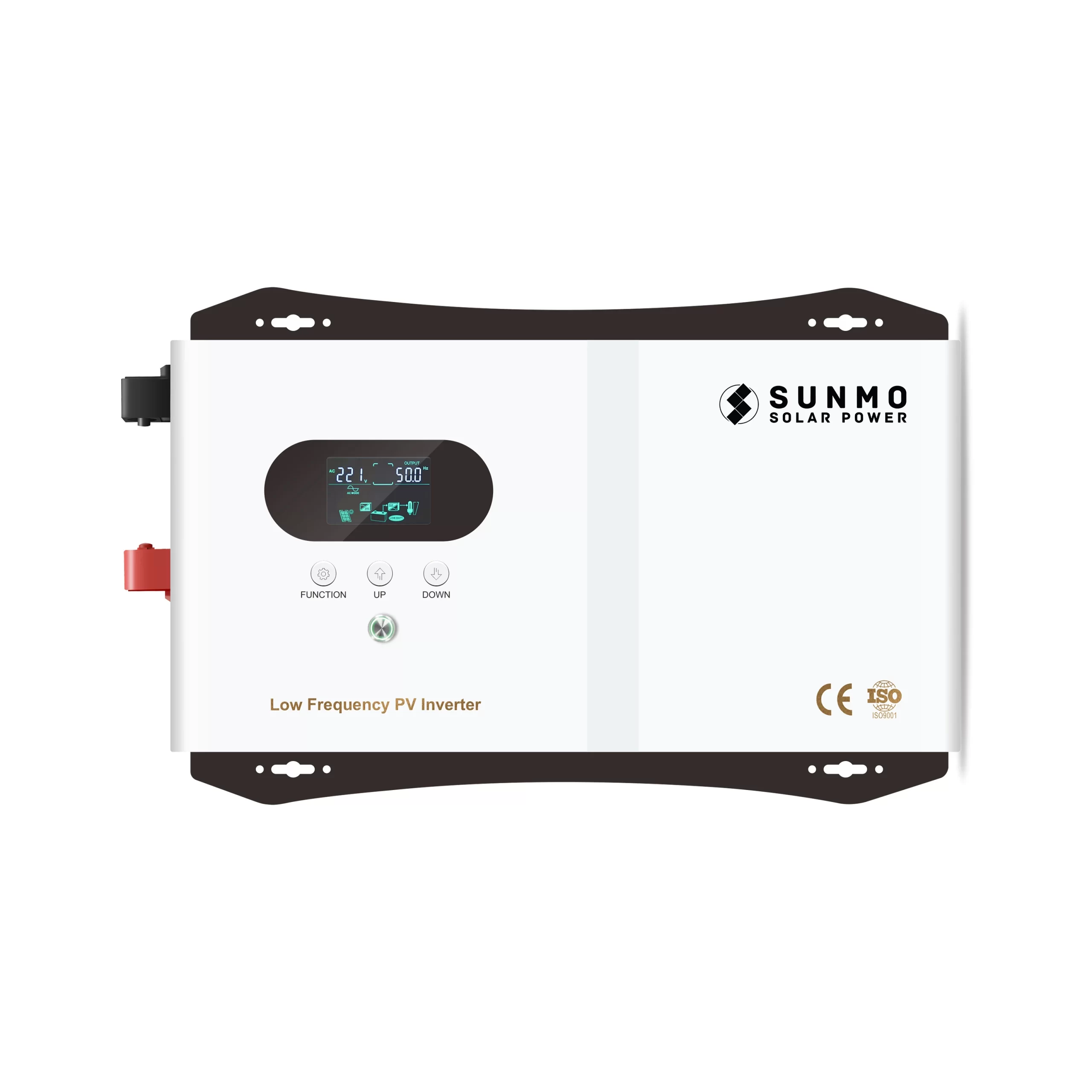

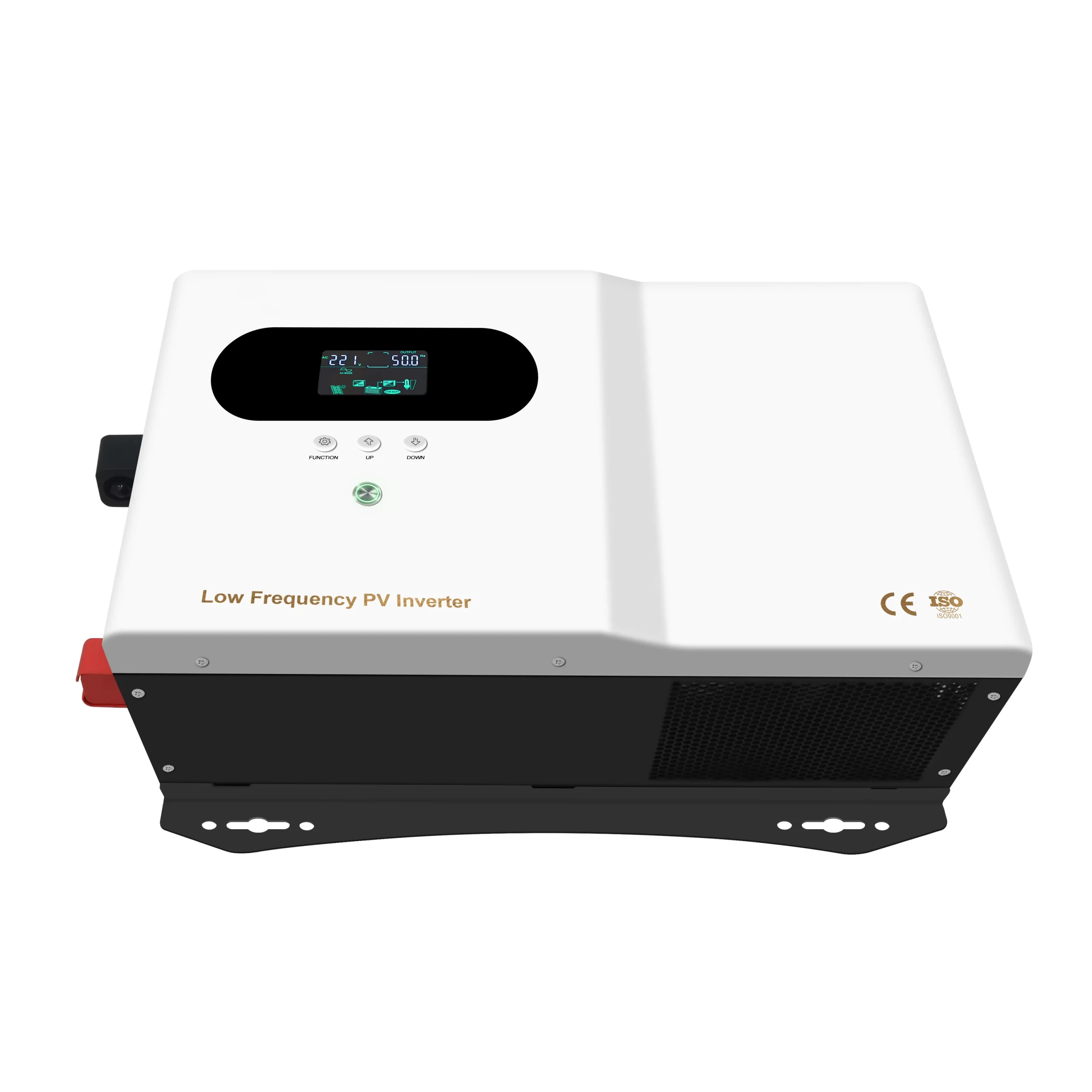

SDF RV Solar Inverter Charger 1000W-7000W

1 : Supports dual LCD displays, optional 3-meter-long external display, one-button turn on and off the inverter and easy to view the operating data.
2 : Compatible with lithium and lead-acid batteries. Solar energy, diesel gasoline generators, and utility grid can charge the battery.
3 : Support RS485, WIFI, GPRS communication to monitor inverter operating data.
4 : Suitable for RV, camper, boats, food trucks, ambulances, yacht boat, homes, etc. Turn dc to ac.
5 : Power factory is 1.

分类： low frequency inverter 标签： low frequency inverter

描述

SDF is a horizontal design power solar inverter, is your trusted companion for all your mobile power needs. Crafted with precision, this innovative inverter is tailored to cater to a diverse range of mobile living spaces, including RVs, motorhomes, caravans, campers, food trucks, and more.

Efficiency Unleashed:

Designed for life on the road, the SDF Series inverter maximizes energy efficiency, ensuring that you have ample power for all your appliances and devices. With a focus on performance, it converts DC power from your vehicle’s battery or extra-carry battery into clean and stable AC power, delivering a seamless and reliable energy source for your adventures.

Silent Powerhouse:

Enjoy the tranquility of your surroundings without the disturbance of a noisy generator. The SDF Series solar inverter operates whisper-quiet, allowing you to savor the serenity of your outdoor settings while enjoying the comforts of home.

Your Gateway to Freedom:

With the SDF Series inverter at your side, you have the freedom to roam, explore, and live life on your terms. It’s the perfect solution for those seeking to power their mobile lifestyles, whether it’s enjoying a road trip, embracing the RV / motorhome / caravan / camper lifestyle, or running a food truck business.

SDF Series Solar Inverter Technical Parameter

Model: SDF	10212/24/48	15212/24/48	20212/24/48	30224/48	40224/48	50248	60248	70248
Power
Rated Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W	7000W
Phase Type	Single- Phase
Battery
Standard Battery Voltage	12/24/48VDC			24/48VDC	24/48VDC	48VDC
Battery Type	Lead-acid / Gel / Lithium Batteries//Custom battery
AC Input
Rated Input Voltage	110VAC/120VAC/220VAC /230VAC/ 240VAC
AC Input Voltage Range	85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC）/ 170VAC~275VAC（220VAC）/ 180VAC~285VAC（230VAC）/ 190VAC~295VAC（240VAC）
AC Input Frequency	45Hz~55Hz（50Hz），55Hz~65Hz（60Hz）
AC Output
Output Wave	Pure Sine Wave
Conversion efficiency(INV mode)	>85%
Output Voltage/Frequency (INV mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50/60Hz±1%
Built-in Controller MPPT(optional)
Rated Current	30A		60A			100A
PV Array Max Power	12V（420W）/24V（840W）/48V（1680W）		12V（840W）/24V（1680W）/48V（3360W）			5600W
Max PV Input Voltage（Voc） (At The Lowest Temperature)	12V/24V system：120VDC；48V system：180VDC
MPPT Tracking Voltage Range	12V System（15V-80V）/24V System（30V-100V）/48V System（60V-140V）
Other
Protection Devices	Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree	IP20
Display	LCD
Cooling Method	Cooling fan in intelligent control
Communication	RS485/RS232,APP（WIFI monitoring or GPRS monitoring）Optional
Working Mode（settable）	Battery priority/Mains priority
Operating Temperature	-15℃~40℃
Relative Humidity	0%~95% ,No condensation
Dimensions and Weight
Product Size(LWHmm)	482328191				615315209
Packing Size(LWHmm)	555366249				675391249
N.W.(kg)	12	13	15.5	18	23	24.5	26	27.5
G.W.(kg)	14	15	17.5	20	25.5	27	28.5	30
