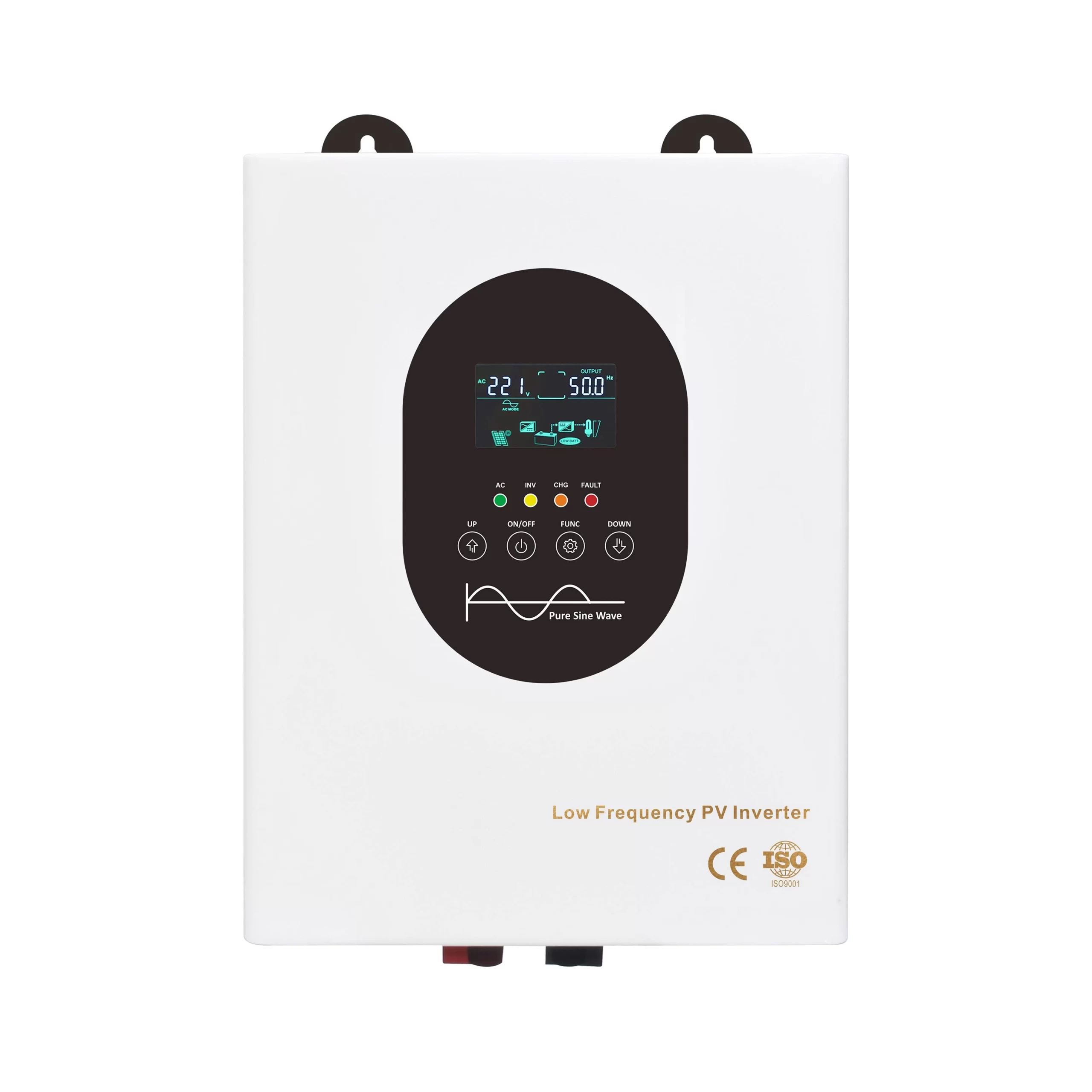

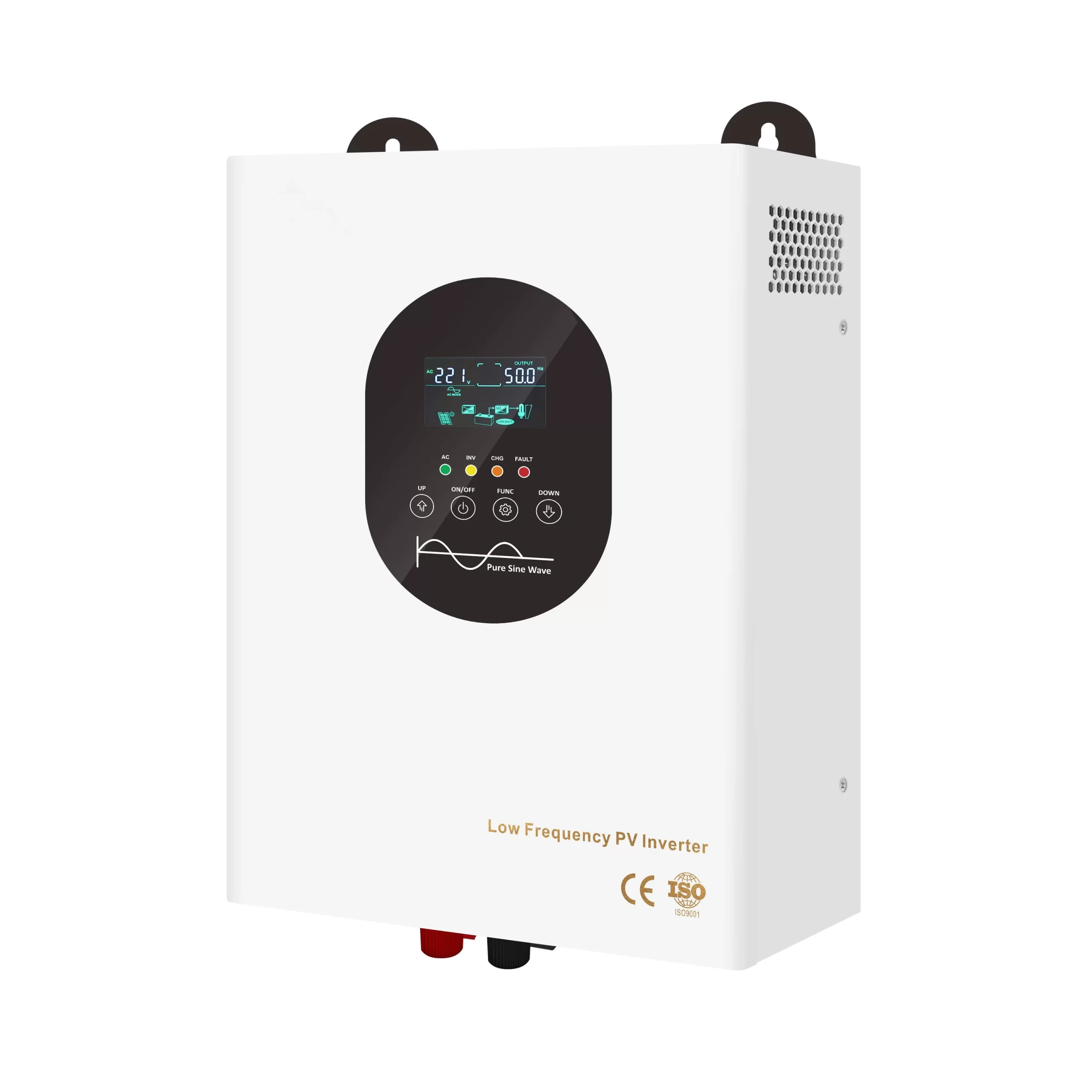

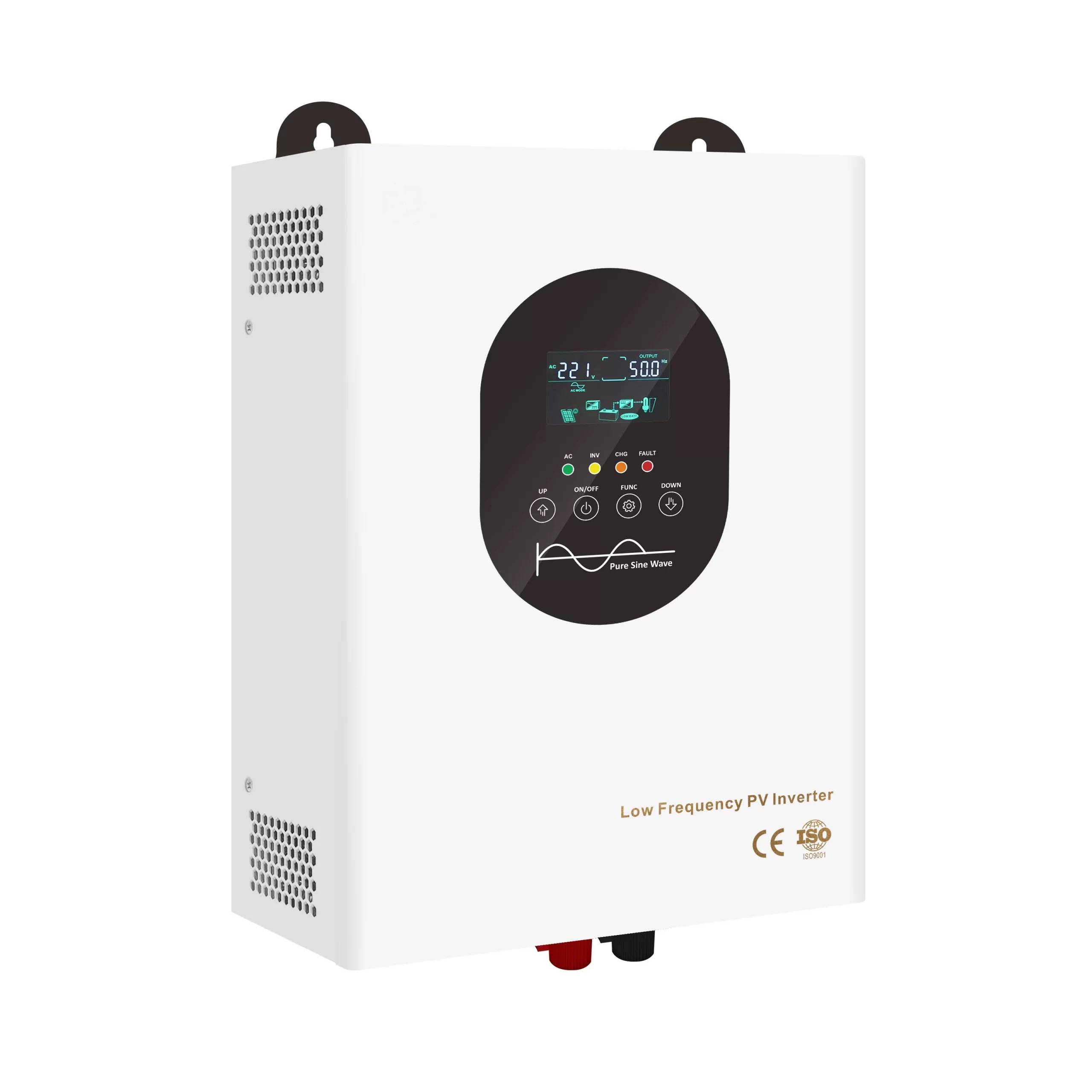

SLF-1 Solar Inverter 1000 Watt
1 : Small size solar inverter off grid design, pure sine wave low frequency
2 : Hybrid inverter with built-in mppt solar charge controller
3 : Solar energy, power grid and generator can charge battery via inverter
4 : Power factor is 1, full power inverter
5 : RS485 and WIFI communication port optional, to remote monitor the inverter running data
SLF-1 series mini solar inverter, 1000 watt 12 / 24 volt, is a popular inverter that Sunmo
Because it is compact, easy to use and affordable.It design with low frequency pure sine wave, which is the most stable operation among all inverter types.
It has two-in-one function of LF series solar energy and AC charging, RS485 and WIFI communication can realize remote monitoring of the inverter’s operating data.
If you need to purchase low-power solar inverter, then this LF-1 mini inverter is definitely your best choice. If you want to choose higher power solar inverter, you can read more about the SLF series inverter.
| Model:LF-1 | 10212/24 |
| Power | |
| Rated Power | 1000W |
| Phase Type | Single phase L-N |
| Battery | |
| Standard Battery Voltage | 12/24VDC |
| Battery Type | Lead-acid battery / Lithium battery / Custom battery |
| Built-in Controller MPPT(optional) | |
| Rated Current | 30A |
| Maximum PV Input Power | 12V(420W)/24V(840W) |
| Max PV Input Voltage(Voc) (At the lowest temperature) | 120VDC |
| Dimensions and Weight | |
| Product Size(L*W*Hmm) | 333*253*126 |
| Packing Size(L*W*Hmm) | 423*318*205 |
| N.W.(kg) | 9 |
| G.W.(kg) | 10 |
| AC Input | |
| Rated Input Voltage | 220VAC/ 230VAC/ 240VAC |
| AC Input Voltage Range | 145VAC~275VAC (220VAC) / 155VAC~285VAC (230VAC ) / 165VAC~295 (240VAC) |
| AC Input Frequency | 45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz) |
| Ac Output | |
| Output Wave | Pure Sine Wave |
| Conversion Efficiency | >85% |
| AC Output Voltage / Frequency Range (INY Mode) | 220VAC±10% / 230VAC±10% / 240VAC±10%, 50/60HZ±1% |
| Other | |
| Protection | Battery undervoltage alarm / Battery undervoltage protection / Battery overvoltage alarm / Battery overvoltage protection / Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection |
| Protection Degree | IP20 |
| Display | LCD |
| Cooling Method | Cooling Fan in Intelligent Control |
| Communction | RS485/APP |
| Working Model (settable) | Battery priority/ Mains Priority |
| Operating Temperature | -15℃~40℃ |
| Relative Humidity | 0%~95%, (No Condensation) |
